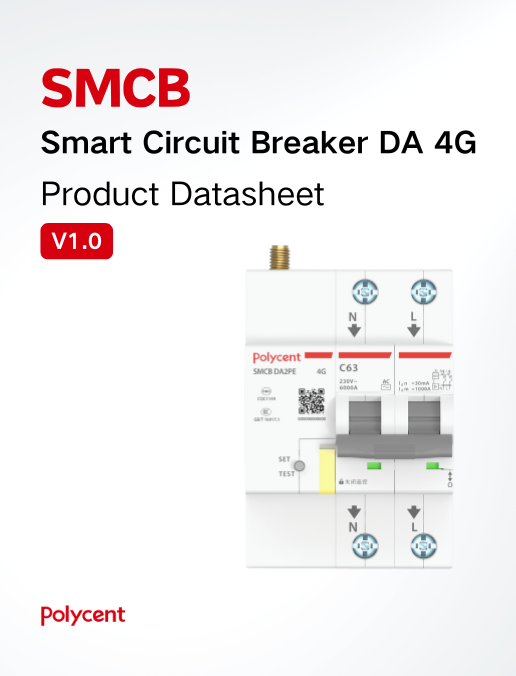

Smart Circuit Breaker（4G、WiFi、ETH）

产品功能

性能参数

Model	SMCB 1P 4G	SMCB 2P 4G	SMCB 2PE 4G
Function type
Type	Ordinary type	Ordinary type	Leakage monitoring type (E）
Built-in communication method	4G	4G	4G
Support other built-in communication methods	WiFi、ETH（Ethernet）	WiFi、ETH（Ethernet）	WiFi、ETH（Ethernet）
Electrical characteristics
Rated current In	6-100A	6-100A	6-100A
Rated working voltage Ue	AC 230V	AC 230V	AC 230V
Rated insulation voltage Ui	500V	500V	500V
Rated impulse withstand voltage Uimp	4000V	4000V	4000V
Rated short-circuit breaking capacity Icn	6kA	6kA	6kA
Rated frequency	50/60	50/60	50/60
Phase voltage operating rang	85-265V	85-265V	85-265V
Tripping feature	Type C, Type D	Type C, Type D	Type C, Type D
Mechanical properties
Mechanical life	10000次	10000次	10000次
Electrical life	10000次	10000次	10000次
Mechanical life	10000次	10000次	10000次
Other features
Working environment temperature	-20℃~+80℃	-20℃~+80℃	-20℃~+80℃
Working relative humidity	≤95%(No condensation)	≤95%(No condensation)	≤95%(No condensation)
Main control power supply method	Take power from phase A	Take power from phase A	Take power from phase A
Wiring method	Single-phase single-wire(1P)	Single-phase two-wire(2P)	Single-phase two-wire(2P)
Wiring direction	Top in, bottom out	Top in, bottom out	Top in, bottom out
Installation method	Standard guide rail installation	Standard guide rail installation	Standard guide rail installation
